Architectural Step

Architectural Step

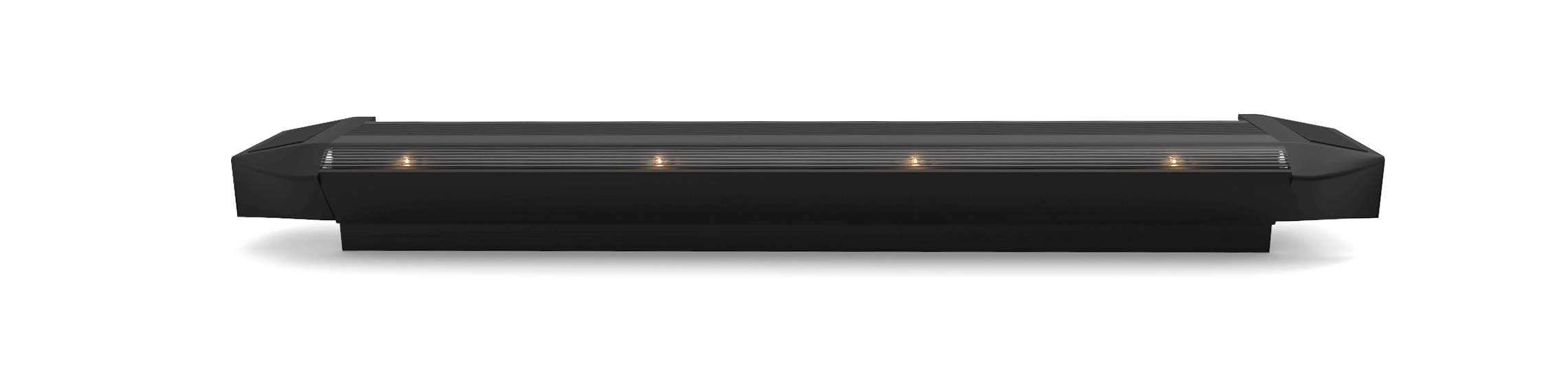

Reliable LED lighting system using individually replaceable LED modules for easily maintained step illumination.

FEATURES

  • Architectural Step Lighting features an aluminum base, a continuous diffuser lens in flame-retardant polycarbonate and flush-fitting end caps for a completely integrated auditorium system
  • Incorporates our Titanium module strand with field-replaceable PCBs
  • Pre-cut and assembled according to specification.
  • Optional illuminated row indicator is available.
Mounting

Surface Mount

Ideal Application

Interior 90° step lighting illumination

Architectural Step

SPECIFICATIONS

  • Voltage = 12V DC
  • Power Consumption (W/ft) = Up to .005
  • Dimming = MLV
  • Environment = Damp Location
  • Kelvin Temperature = 1900K, 2700K, 3000K, 3500K, 4000K, Amber, Red, Blue
  • CRI = 80+
  • Lumen Maintenance (L70) Hours = 75,000
  • Certifications = cETLus
  • Warranty = 5 Years

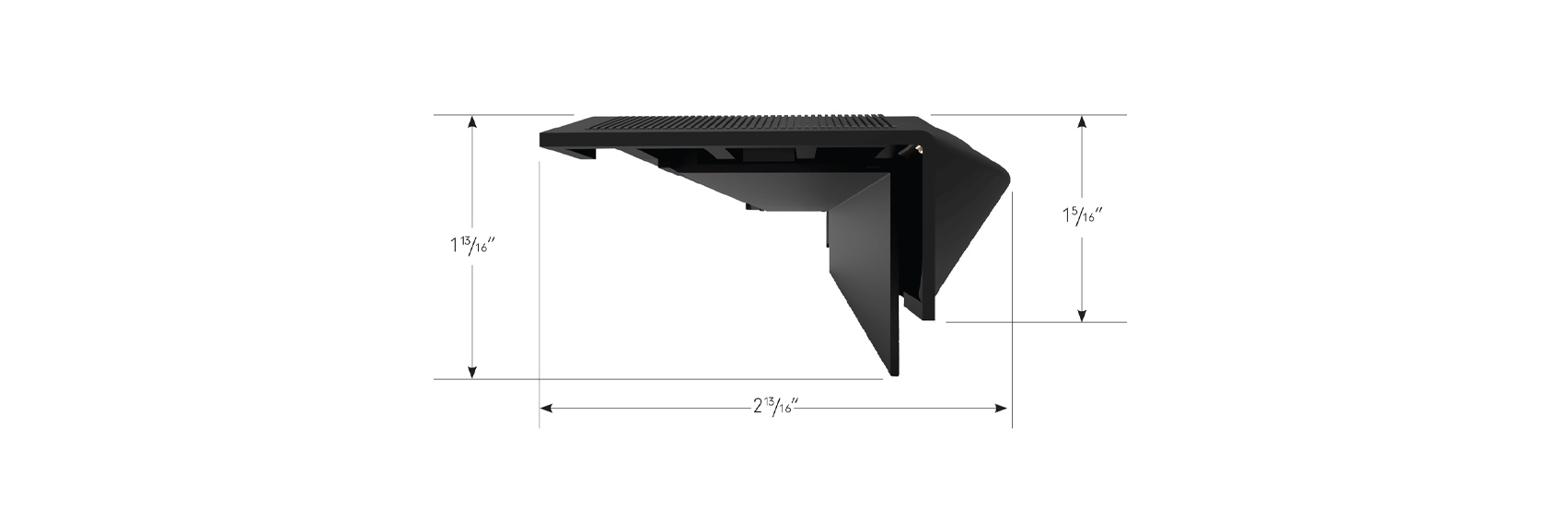

Product Dimensions
