Flexile LG System

Flexile LG System

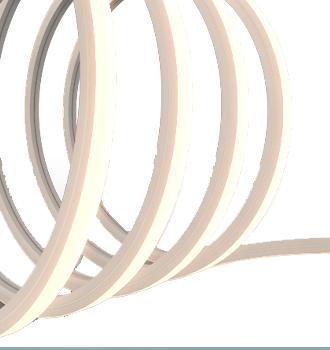

Tivoli’s FLEXILE LG System is a 360° bendable lighted surface without any shadowing.  A 1.25″ bend radius with a 0.98″ diameter allows for curved applications with UV stabilized, food-grade environmental silicone housing. Multiple mounting options from a rigid telescoping bracket to hidden surface clips to explore creative design installations.

FEATURES

  • Compare to traditional neon 360° lighted surface illuminates uniformly without any shadowing
  • High luminous efficiency with LM80 report
  • Easily bend to any shape with superior flexibility
  • UV Stabilized with food-grade environmental silicone housing (no yellowing or cracking)
  • Resistance to saline solutions, acids, alkali, and corrosive gases
    Low Voltage 24V DC
Mounting

Surface, Suspended

Ideal Applications

Indoor applications

Flexile LG System

SPECIFICATIONS

  • Voltage = 24V DC
  • Power Consumption (W/ft) = 4.5
  • Max Run (ft) = 16.25' Mechanical, 20' Electrical
  • Dimming = MLV, ELV, 0-10V, DMX, TRIAC
  • Environment = Dry Location
  • Kelvin Temperature = 2300K, 2700K, 3000K, 3500K, 4000K
  • CRI = 95
  • Lumen Output (lm/ft) = Up to 345
  • Efficacy (lm/W) = Up to 76.6
  • Lumen Maintenance (L70) Hours = 70,000
  • Mount Options = Suspension, Surface
  • Certifications = cULus, CE, RoHS, IK08
  • Warranty = 3 Years

Product Dimensions

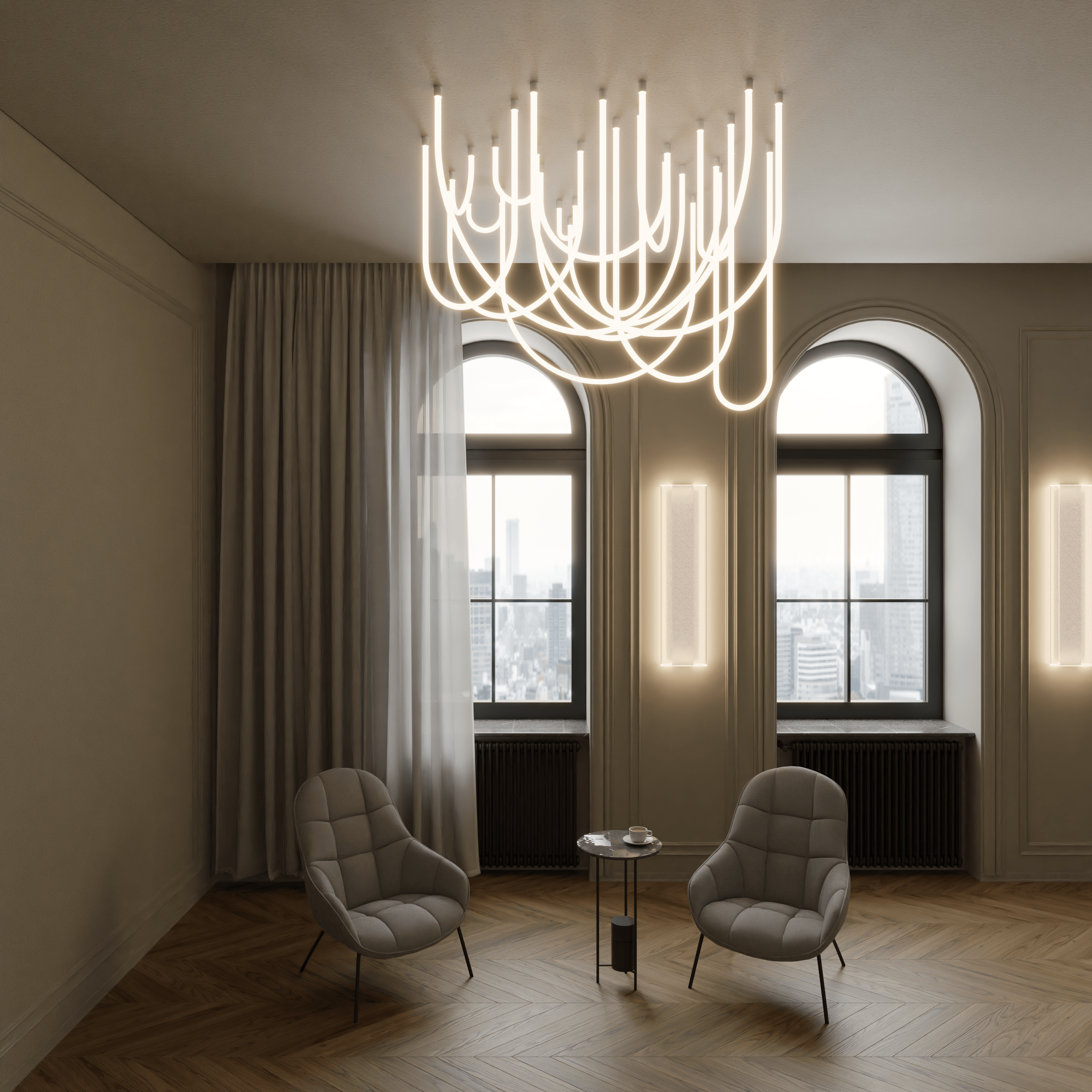

Application Photos
