Illumiline HO

High Output LED accent light tubing that creates a glowing effect for direct or indirect lighting applications.

Illumiline HO

Features

2216 SMD LEDs (0.83” O.C.)
4 x White CCTs (2700K – 6000K)
High lumen output 195 Lumens/ft
Clear or lightly frosted
IP66 (Indoor/Outdoor)

Mounting

Surface Mount

Ideal Application

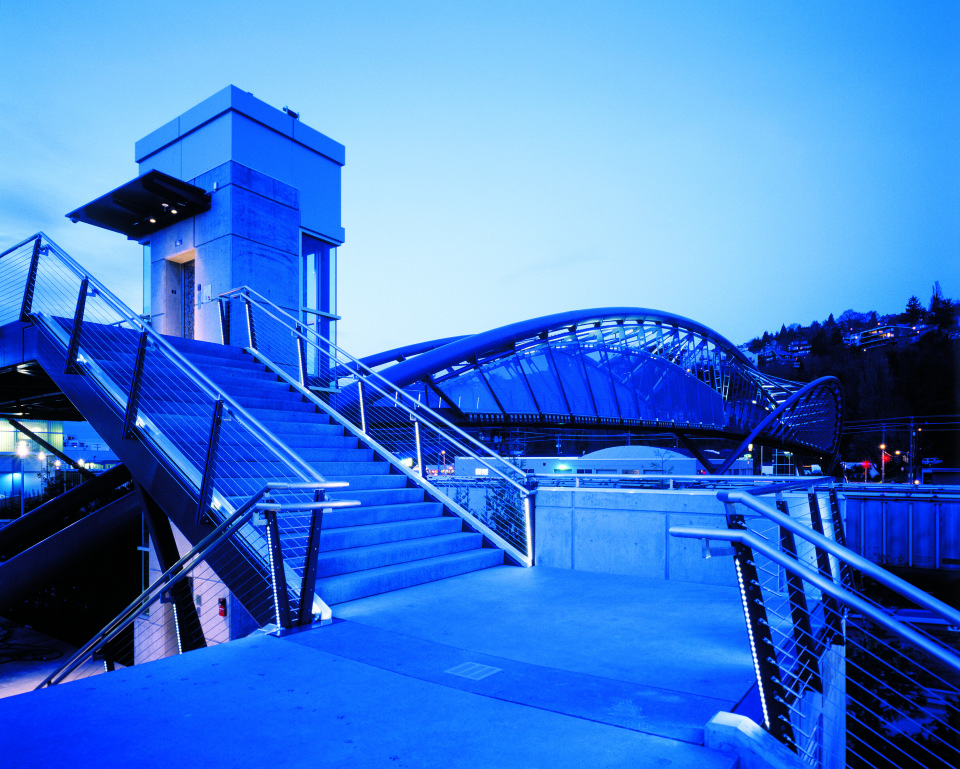

For architectural elements such as walkways, bridge structures, and hand rails where high or low ambient light application is needed

Specs

Voltage = 24V DC
Power Consumption (W/ft) = 5.5W
Max Run (ft) = 12'
Dimming = Non Dimming, MLV, ELV, 0-10V
Environment = Wet Location
IP Rating = IP66
LED Color ( Kelvin Temp ) = 2700K, 3000K, 4000K, 6000K
CRI = 80+
Lumen Output (lm/ft) = 100-200
Efficacy (lm/W) = 35
Lumen Maintenance (L70) Hours = 50,000
Mount Options = Surface, Recessed
Certifications = cULus
Warranty = 3 Years

Similar Products

Downloads

Specification
Illumiline High Output Specification
Installation
Illumiline High Output Installation
IES File
ILTHO-1010-28-02-24

Case Studies

No images found in the case studies gallery.

Gallery
